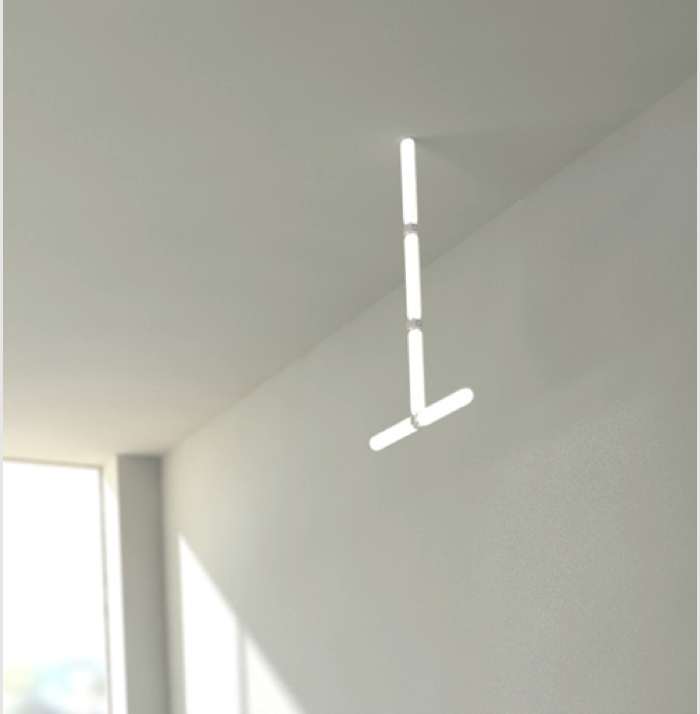

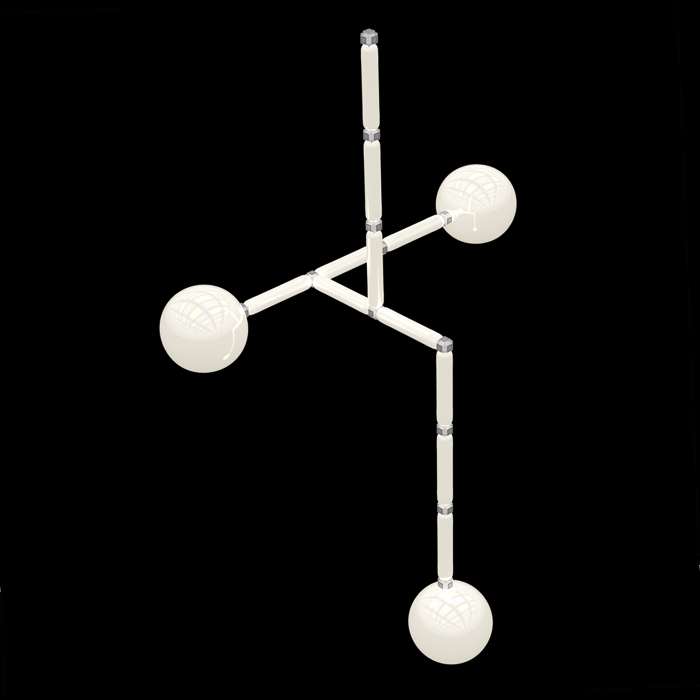

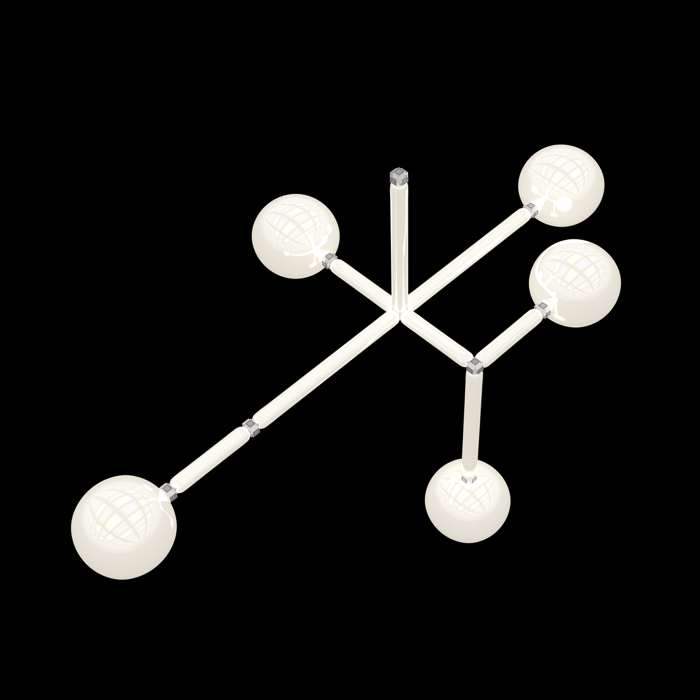

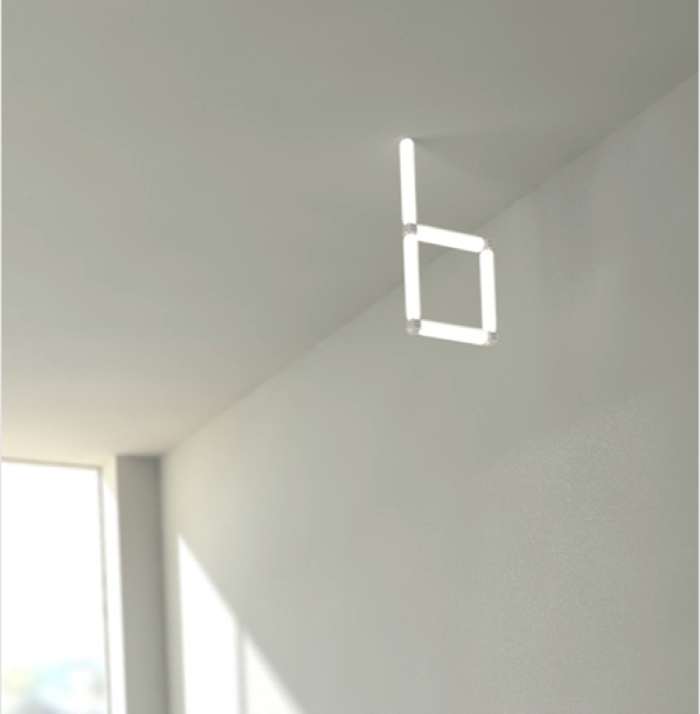

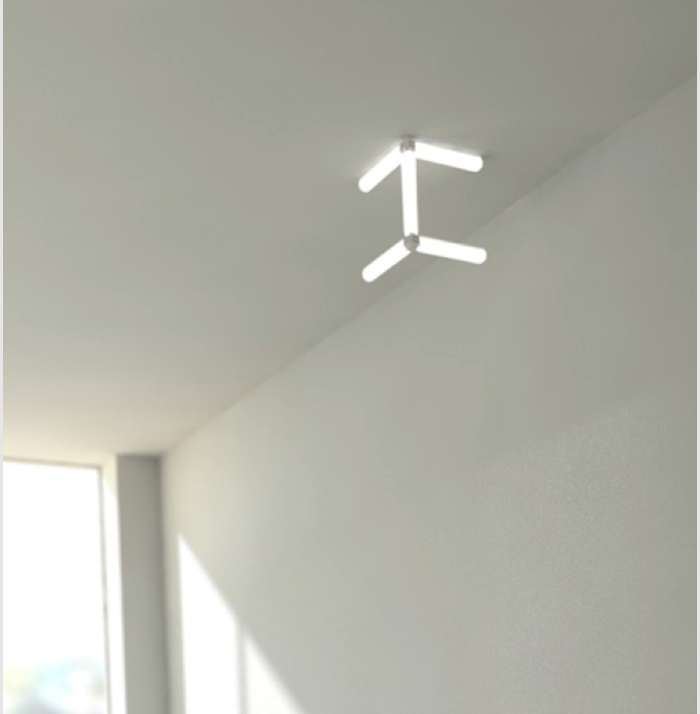

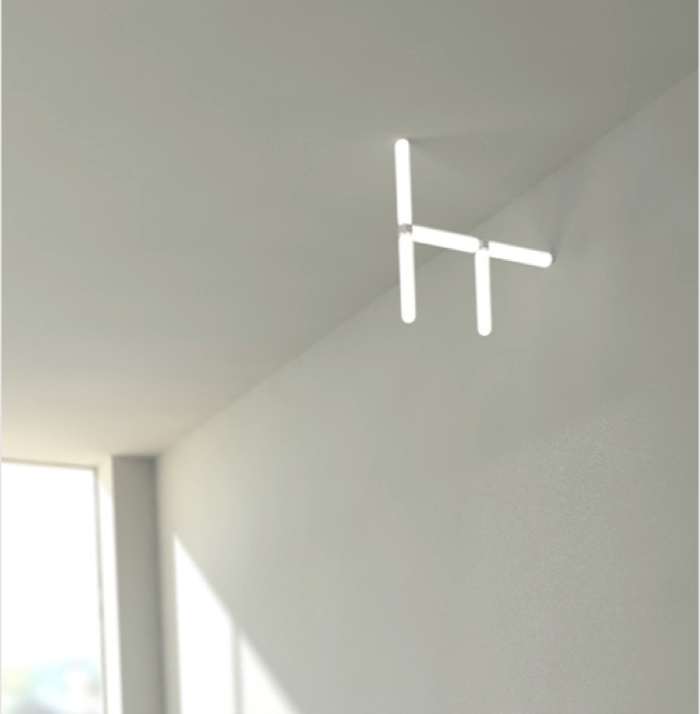

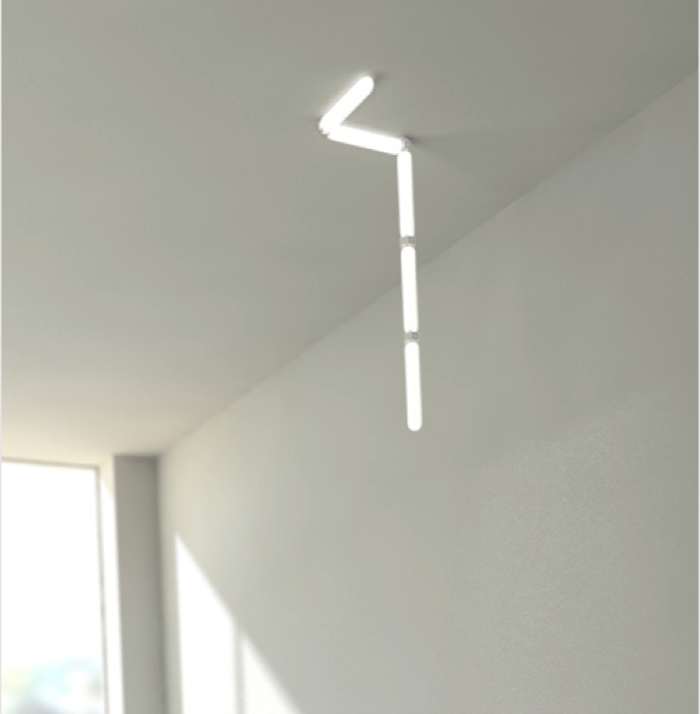

The BIT Light can be rearranged to create variable three-dimensional forms as a surface mount fixture (walls, ceilings, floors, or task surfaces) or configured as a suspension. The BIT Light can form expansive linear architectural elements, or can be combined to create reconfigurable lighting objects.

BitLightdiagram3

A large number of BITs assembled as an artistic installation utilizing multiple power connections on different surfaces. Each additional BIT increases the level of illumination and the possible number of variations in form.

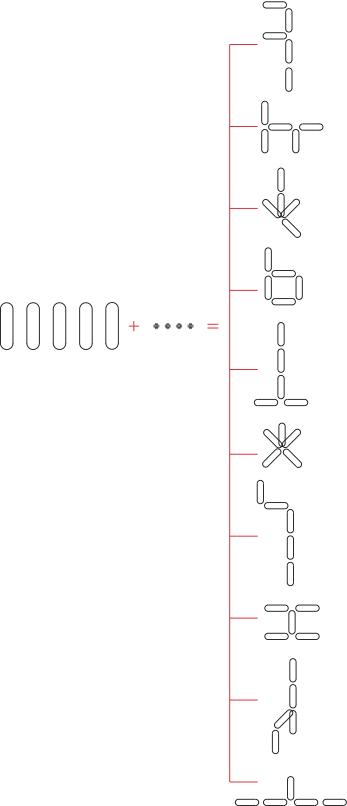

This first release of the BIT Light consists of linear BITs with magnetic orthogonal connectors. A few of the possible arrangements with five BITs are shown above.

BitLightClose1
BitLightClose2
BitLightClose3
BitLightPink

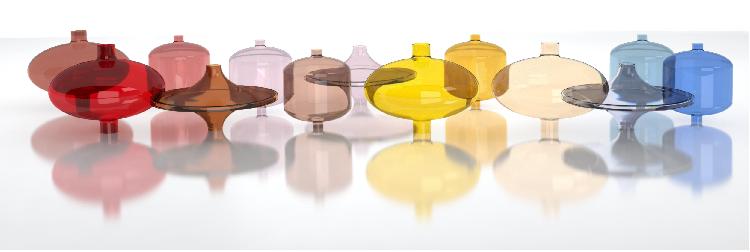

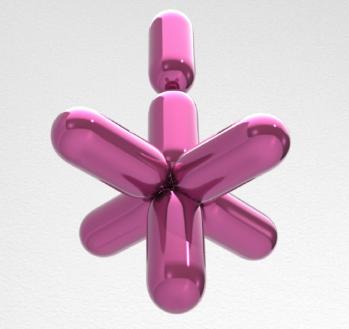

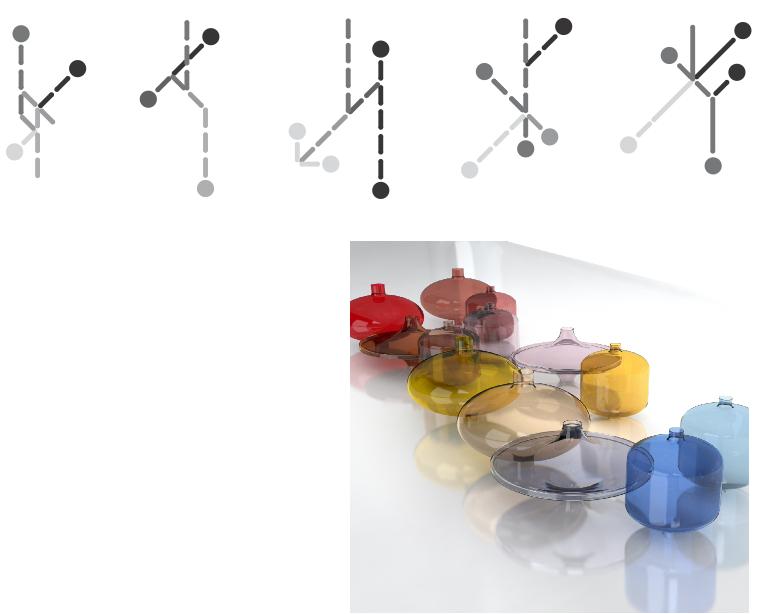

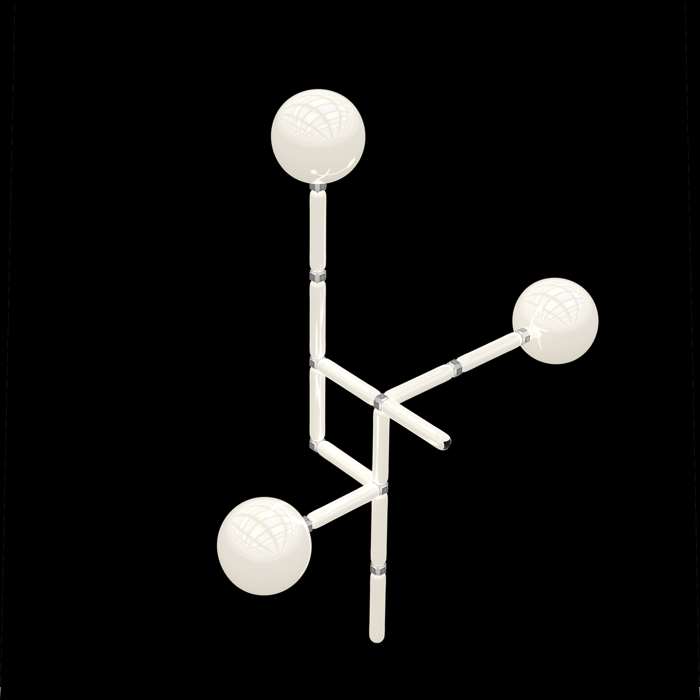

Currently, BITs in a great variety of forms, colors, materials, as well as connectors that allow for different connecting angles and positions are being developed.

ILLUMINATION LEVELS
SIMPLE CONNECTION

Each BIT generates 460 lumens of omni-directional lighting and can be dimmed with a conventional dimmer switch.

Each additional BIT incrementally increases the illumination level.

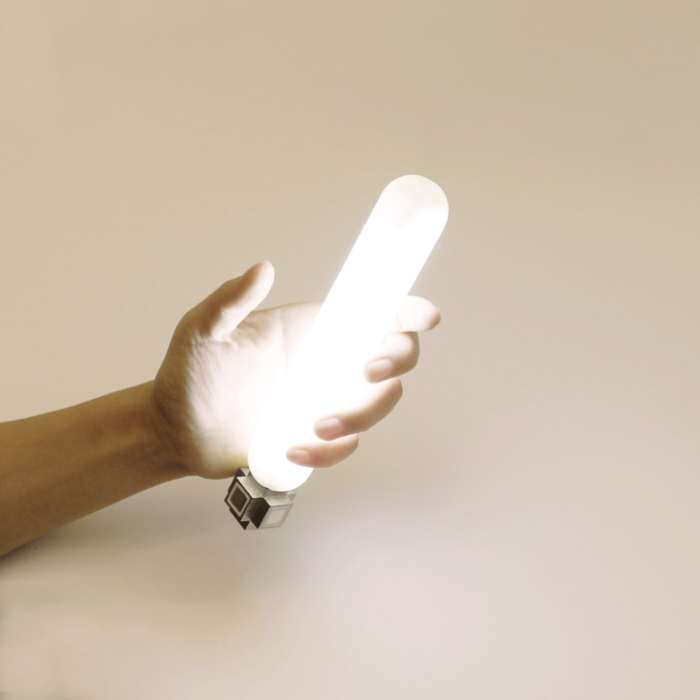

Because the BIT is an integrated bulb without external wires, it is easy for anyone to manipulate. The low power LED is safe and cool to touch, while the polycarbonate shell is impact resistant, and recyclable.

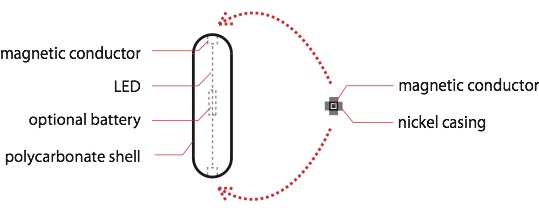

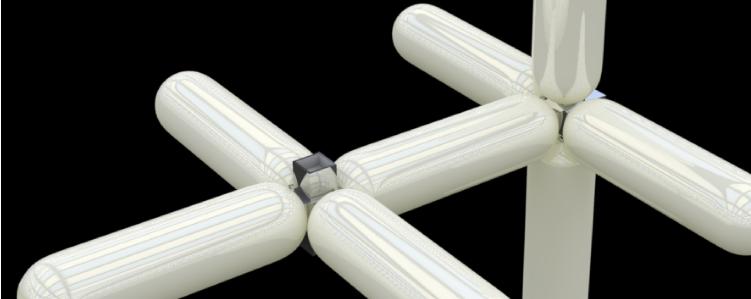

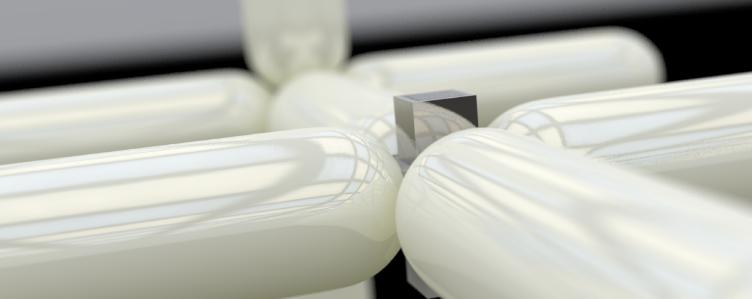

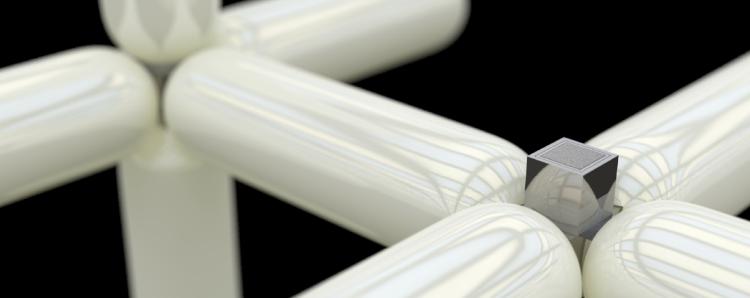

Each BIT contains a low voltage LED light source and a structural, protective, translucent polycarbonate shell. Multiple BITs are fastened with a magnetic connector that physically secures and electrically connects the BITs together and to a power source.

COMPONENTS AND SAFETY

The BIT Light™ is a new modular lighting system that provides an alternative means of adjusting the illumination level found with most lighting fixtures. Unlike traditional fixtures, the BIT Light consists of a collection of self-supporting illuminating modules (BITs) which can be simply added or removed by the end-user to increase or decrease the fixture’s brightness, without requiring technical skills or the help of specialists.

VARIABLE FORM

BRIGHTER AND BRIGHTER

MANY VARIATIONS, ONE FIXTURE
MATERIAL, SHAPE & COLOR
 BIT
CONNECTOR

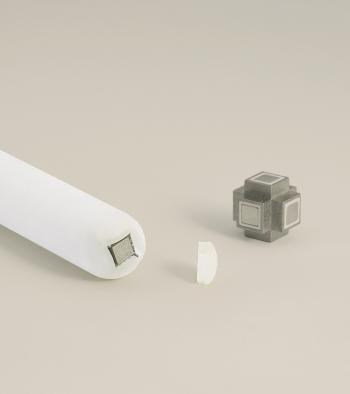

The only exposed conductors on the BITs are the unused connecting ares, which are recessed and can be covered with small insulating covers. On the intermediate connectors, the exterior is grounded and unused connectors can be protected with magnetically fastened insulating covers.

2 BITS + 1 connectors =
3 BITS + 2 connectors =
4 BITS + 3 connectors =
5 BITS + 4 connectors =
6 BITS + 5 connectors =
7 BITS + 6 connectors =

5
25
125
625
3,125
15,625

possible variations
possible variations
possible variations
possible variations
possible variations
possible variations


THE BIT LIGHT™

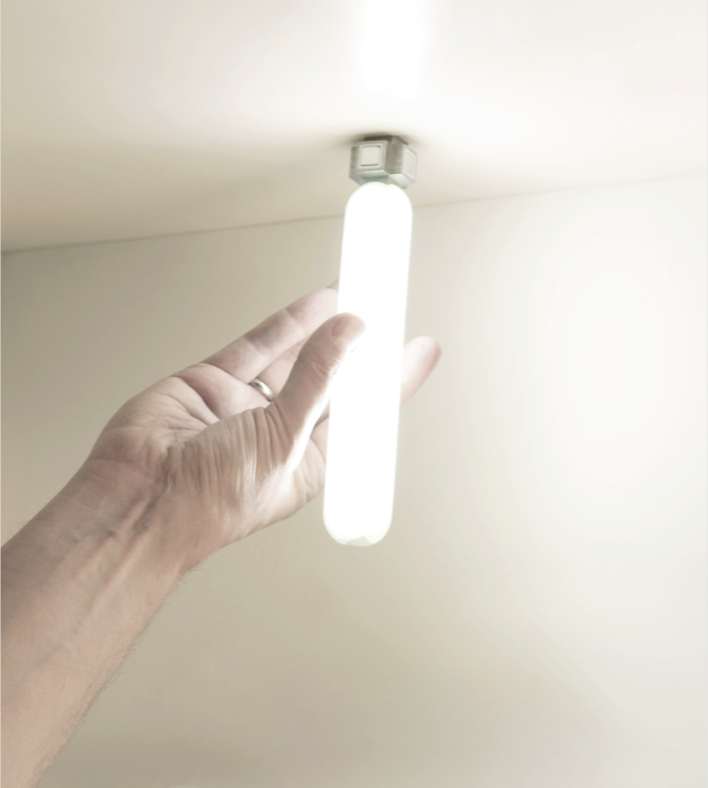

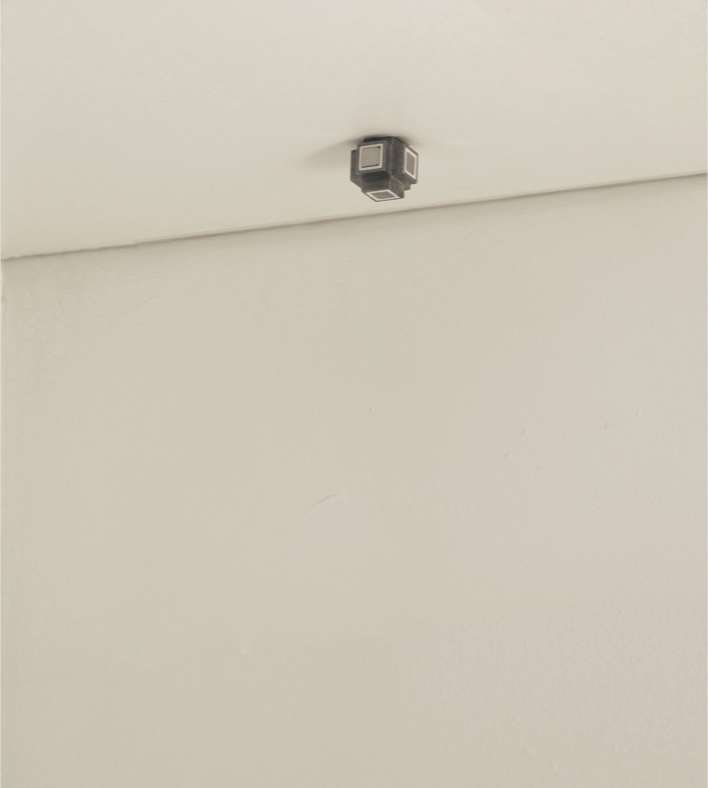

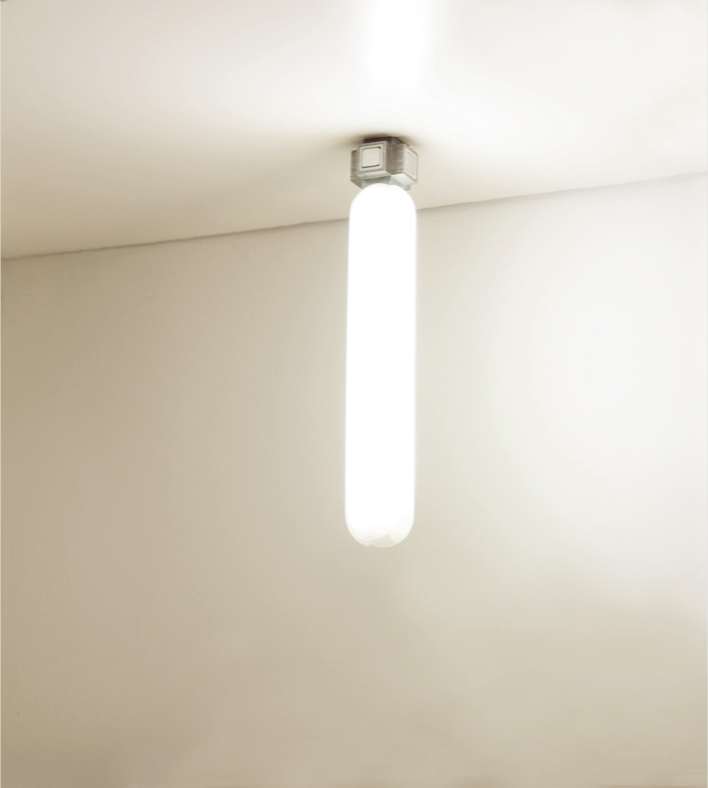

The power comes from either a ceiling/wall mounted terminal that supplies low voltage power via the connector or an internal battery.  The terminal power connector is identical to the intermediate connector and energizes the connected BIT.  The open end of the energized BIT becomes the power source for the next connected device.

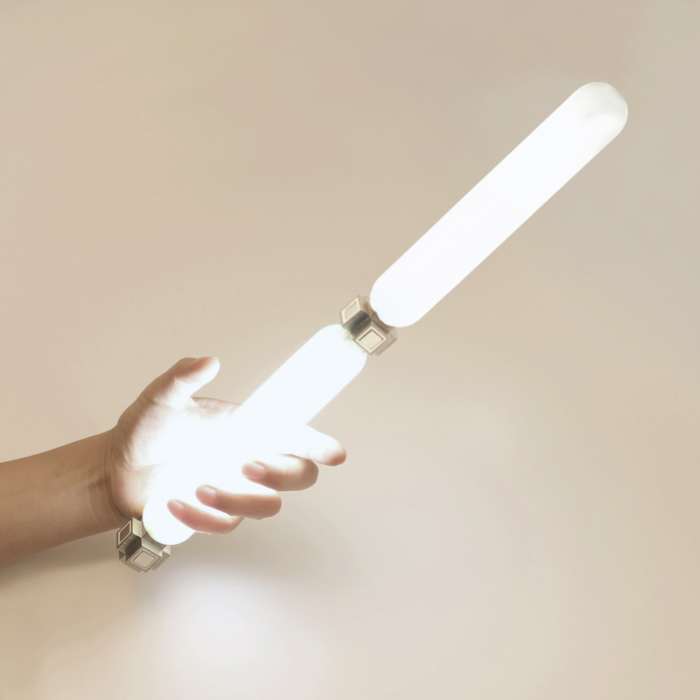

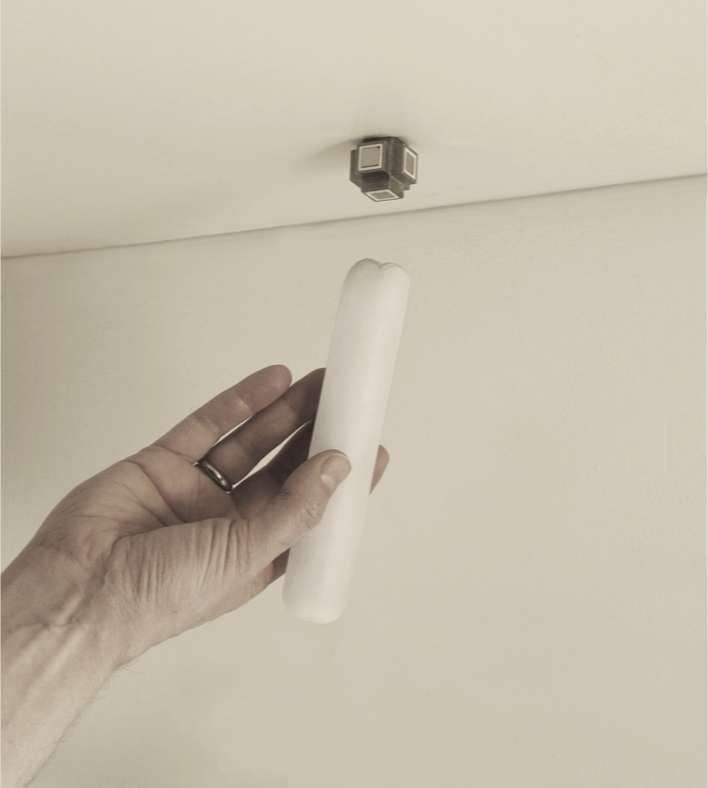

As BITs are joined by the magnetic connectors, they are connected electrically and structurally. The integrated modular design eliminates wires and is easy for anyone to adjust.

The name BIT comes from three sources. Primarily, the Korean word for light, which in English is pronounced something like "bit". The light is also an assembly of parts, or bits. And finally, it is an acronym for Bulb with Integrated Technology.

The BIT Light (patent pending) © 2014, Choi+Shine Architects, LLC.

BIT Light is a trademark of Choi+Shine Architects, LLC.



Choi+Shine is a multi-disciplinary architecture and design firm with offices in London, Seoul and Boston, best known for their Land of Giants™ high voltage transmission towers. For questions regarding this design please contact Sarah Kim at Choi+Shine. Intellectual property rights advice provided by Sunstein, Kann Murphy & Timbers, LLP.
